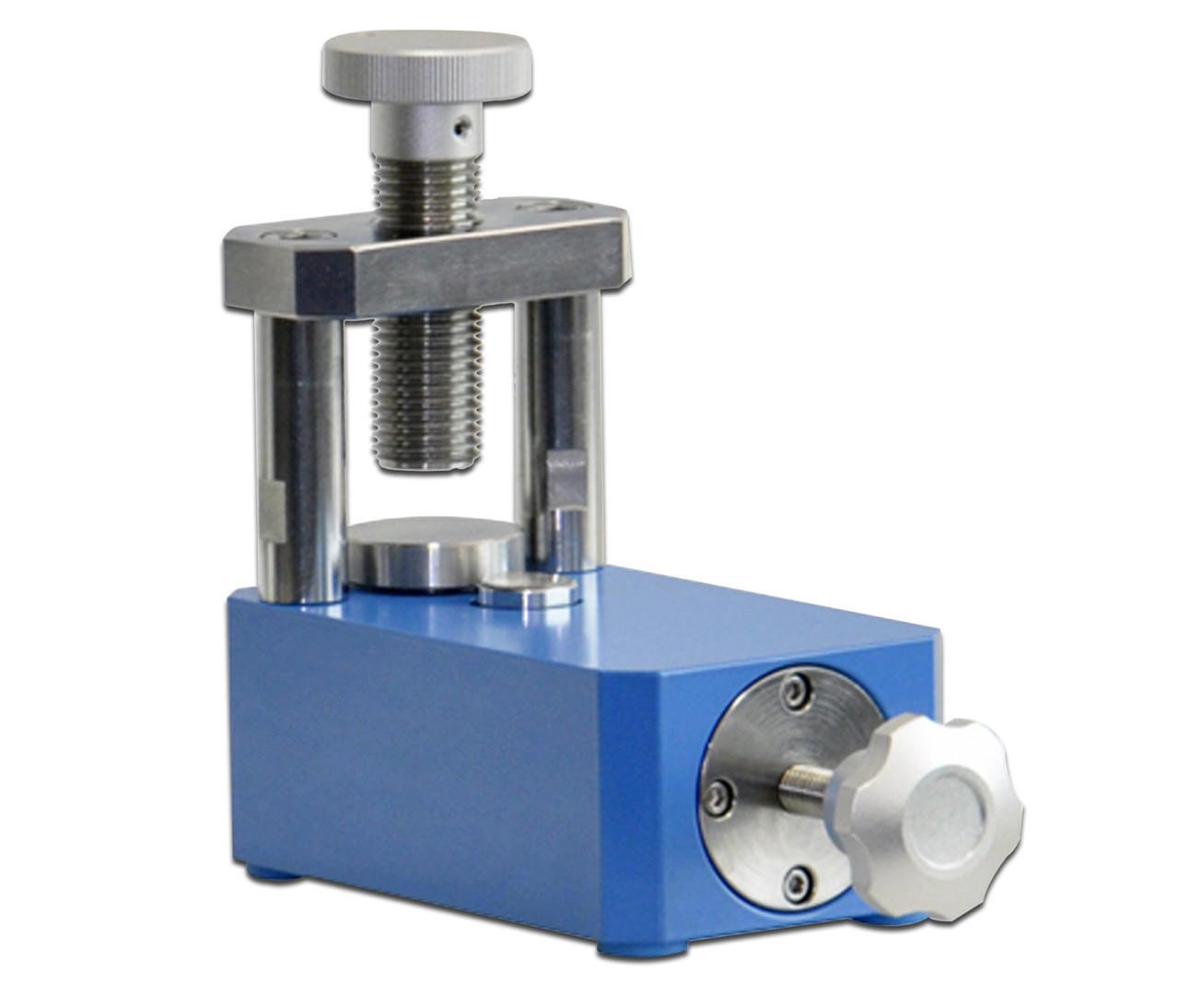

Mini Pellet Press
A mini pellet press is a device used for producing small pellets or tablets from powder or granular materials. The included 7mm pellet die assembly fits securely onto the press’s lower piston and comes with a pellet ring that holds the sample pellet after pressing. This ring can be easily placed in a spectrometer’s sample chamber. Mini pellet presses are ideal for creating small batches of tablets or pellets for research and development, or for producing customized pellets for specific applications. The Mini Pellet Press is a laboratory hydraulic press designed for beginners to prepare high-quality 7mm KBr pellets for transmission FTIR analysis.
As Nano Chicago, we supply Mini Pellet Presses that are high-quality and suitable for a variety of applications and requirements.
Technical Properties of Mini Pellet Press
| Parameter | Value |
|---|---|
| Pressure Range | 0–2 T |
| Piston Diameter | 28 mm |
| Piston Stroke | 5 mm |
| Pressure Stability | ≤1 MPa/10 min |
| Diameter of Worktable | 45 mm |
| Number of Columns | 2 Columns |
| Column Spacing | 54×55 mm |
| Dimensions | 100×220×220 mm |
| Equipment Weight | 4.8 kg |
Applications of Mini Pellet Press
-
Ideal for FTIR/KBr pellet preparation.
-
Operates fully hydraulically with an integrated pressure gauge.
-
Easy to operate, requiring minimal training.
-
Compact and lightweight design.
-
Low cost of ownership and maintenance.
-
Can be used in the chemical industry to produce compressed pellets of chemicals for easier transport and storage.
